KOBREX

VULCAKOB®

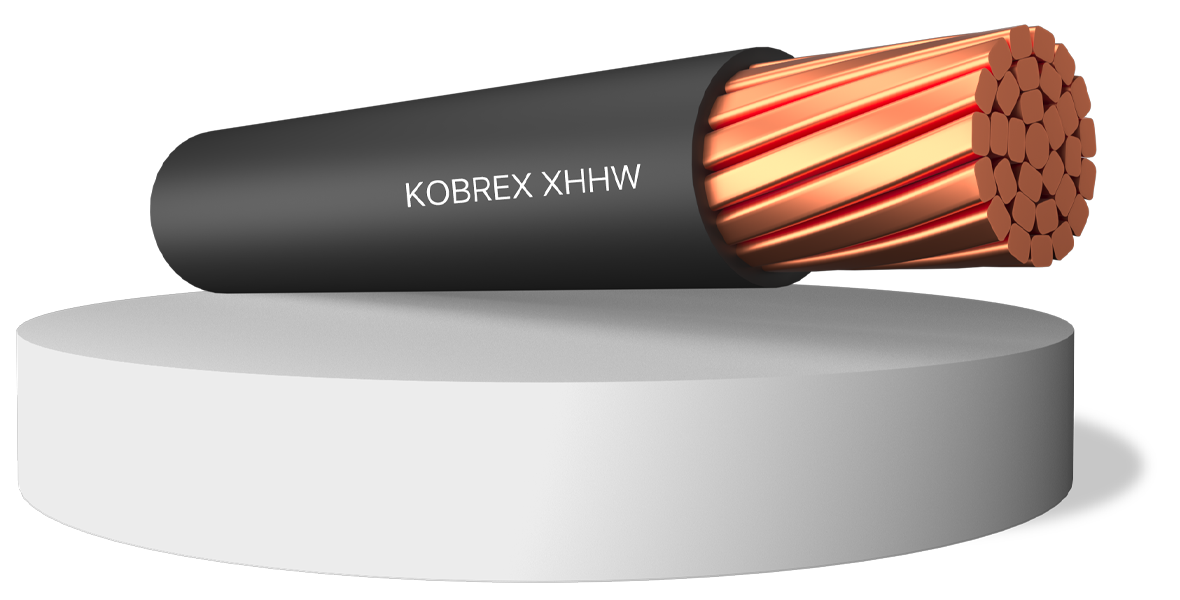

600V/1000V 90ºC SOFT COPPER CONDUCTOR XHHW-2-SR-CT TYPE

RESISTENTE A AGENTES QUÍMICOS COMUNES

OIL AND
GASOLINE
RESISTANT

sun

SUNLIGHT
RESISTANT
CONSTRUCTION

APTO PARA INSTALACIÓN SUBTERRÁNEA

DIRECT
BURIAL
INSTALLATION

  • Copper conductor.
  • Cross Linked Polyethylene (XLPE) any color insulation, moisture resistant, high heat.
  • Available in plastic and plywood reels.
  • Manufacturing range from (Wires) 14 AWG to 10 AWG and (Cables) 14 AWG to 1000 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Service entrance.
  • Lighting and low voltage power systems.
  • Power circuits.
  • Control circuits.
  • Solar and wind farms.
  • Industrial installations.
  • Public buildings.
  • Recreational buildings.
  • Available in plastic and plywood reels.
  • Manufacturing range from (Wires) 14 AWG to 10 AWG and (Cables) 14 AWG to 1000 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Cross Linked Polyethylene (XLPE) insulation.
  • Sunlight resistant (all colors).
  • PRI and/or PRII – oil resistant.
  • GRI and/or GRII – gasoline resistant.
  • Wet or dry locations not exceeding 90°C.
  • Suitable for direct burial installation.
  • Horizontal flame resistant.
  • Available in plastic and plywood reels.
  • Manufacturing range from (Wires) 14 AWG to 10 AWG and (Cables) 14 AWG to 1000 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
Maximum operating voltage
600/1000 volts
Preferred max. operating temp (Dry)
90°C/194°F
Preferred max. operating temp (Wet)
90°C/194°F
Preferred max. operating temp (Emergency)
130°C/266°F
Preferred max. operating temp (Short Circuit)
250°C/482°F
  • Available in plastic and plywood reels.
  • Manufacturing range from (Wires) 14 AWG to 10 AWG and (Cables) 14 AWG to 1000 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • ASTM – B800 and either B801
  • UL 44
  • Available in plastic and plywood reels.
  • Manufacturing range from (Wires) 14 AWG to 10 AWG and (Cables) 14 AWG to 1000 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓

FEATURED SPECIFICATIONS

Maximum operating voltage

600 V or 1000 V.

Max. operating temperature

Up to 90°C in dry and wet locations.

HIGH RESISTANCE INSULATION

Cross-linked polyethylene insulation for reliable performance.

HIGH RESISTANCE PERFORMANCE

Resistant to sunlight, oil, gasoline, and horizontal flame propagation.

Manufacturing range

Available in (Wires) 14 AWG to 10 AWG and (Cables) 14 AWG to 1000 kcmil.

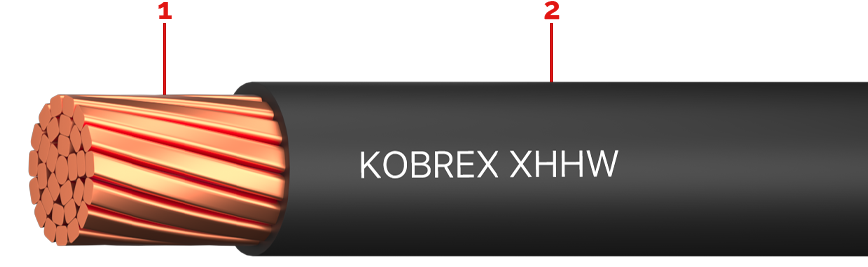

CABLE CONSTRUCTION

CONDUCTOR

Copper conductor.

insulation

Cross linked polyethylene (XLPE).

documentation and support

DATA SHEET

Download the data sheet of the product.

CERTIFICACIÓN ANCE

Consulta la certificación oficial del producto.

CERTIFICACIÓN ANCE

Consulta la certificación oficial del producto.

CERTIFICACIÓN LAPEM

Certificaciones emitidas por LAPEM.
