KOBREX

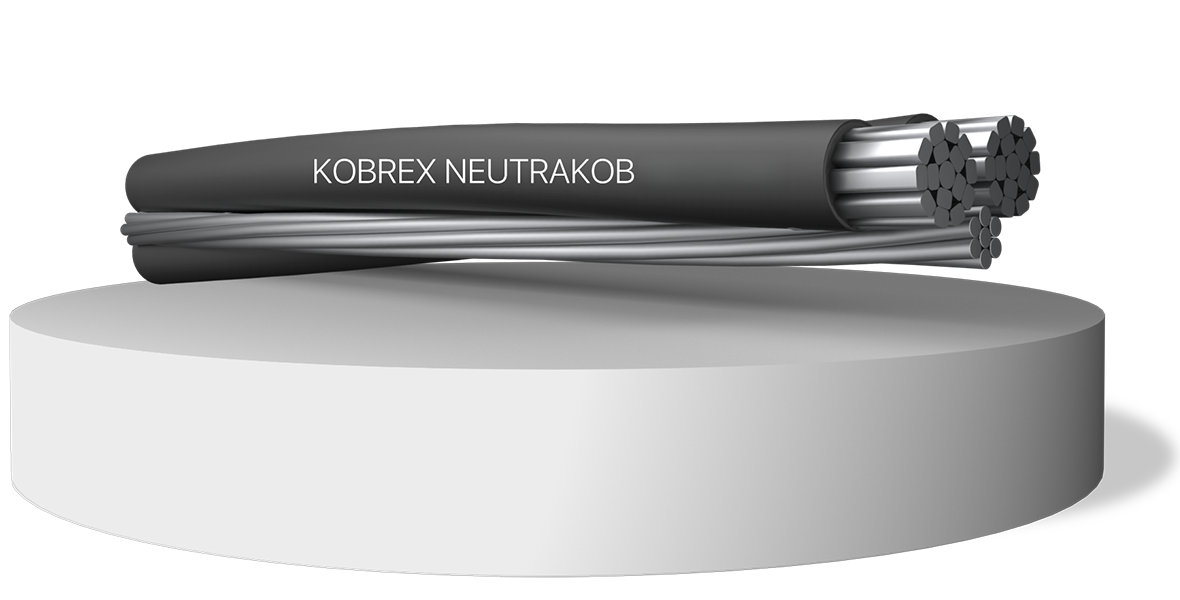

SERVICE DROP ALUMINIUM

600 V 75°C

ALTA CONDUCTIVIDAD ELÉCTRICA

GOOD
ELECTRICAL
CONDUCTIVITY

bajo peso y ligero

LIGHTWEIGHT
FOR OVERHEAD
LINES

alta resistencia mecánica

HIGH
MECHANICAL
STRENGTH

  • Phase: 1350 aluminum alloy conductor, with H-19 wires (hard drawn temper) stranded insulated with black weather resistant XLPE (90°C) or PE (75°C).
  • AAC Neutral: 1350 aluminum alloy conductor, with H-19 wires (hard drawn temper) stranded.
  • ACSR Neutral: 1350 aluminum alloy conductor, with H-19 wires (hard drawn temper) stranded over a core with one or more class “A” galvanized steel wires.
  • Available in Wooden reels.
  • Manufacturing range from 4 AWG to 1590 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Aerial power supply from utility lines transformer to consumer service entrance installation in low voltage.
  • Available in Wooden reels.
  • Manufacturing range from 4 AWG to 1590 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • ----
  • ----
  • ----
  • Available in Wooden reels.
  • Manufacturing range from 4 AWG to 1590 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
Maximum operating voltage
—
Preferred max. operating temp
—
Packaging
—
Manufacturing range
—
  • Available in Wooden reels.
  • Manufacturing range from 4 AWG to 1590 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • ASTM B230
  • ASTM B231
  • ASTM B232
  • ASTM B-399
  • ICEA S-76-474
  • Available in Wooden reels.
  • Manufacturing range from 4 AWG to 1590 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓

FEATURED SPECIFICATIONS

Maximum operating voltage

Depending on insulators supporting the line.

Max. operating temperature

Up to 75°C.

HIGH MECHANICAL STRENGTH

Galvanized steel core for increased strength.

IDEAL FOR LONG SPANS

Designed for overhead lines between poles or towers.

Manufacturing range

Available in 4 AWG to 1590 kcmil.

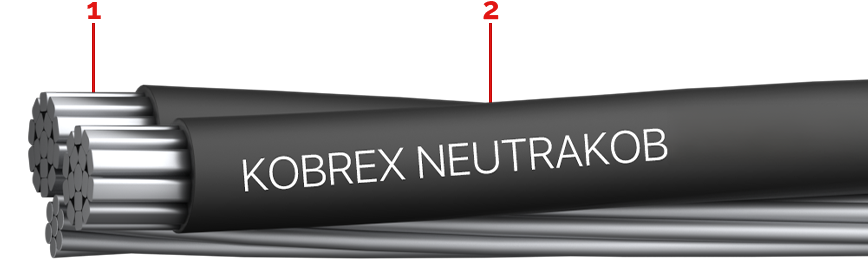

CABLE CONSTRUCTION

CONDUCTOR

1350 aluminum alloy.

INSULATION

Cross Linked Polyethylene (XLPE).

documentation and support

DATA SHEET

Download the data sheet of the product.

CERTIFICACIÓN ANCE

Consulta la certificación oficial del producto.

CERTIFICACIÓN ANCE

Consulta la certificación oficial del producto.

CERTIFICACIÓN LAPEM

Certificaciones emitidas por LAPEM.
