PHOTOVOLTAIC CABLES

XLP INSULATED SR-CT FOR 600, 1000 AND 2000 V 90ºC

apto para humedo y seco

WEATHER
AND SUNLIGHT
RESISTANT

ALTA ESTABILIDAD TÉRMICA

HIGH
THERMAL
STABILITY

RESISTENTE A AGENTES QUÍMICOS COMUNES

OIL
AND GAS
RESISTANT

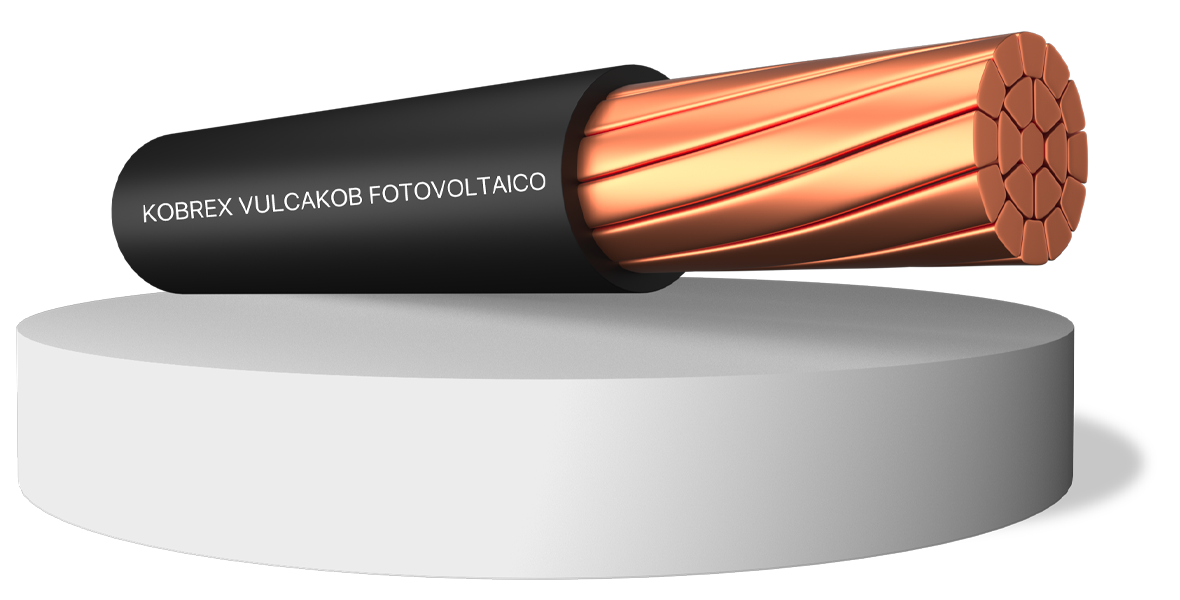

Class “B” strand, concentric or compact conductor of annealed copper or 1350 hard drawn aluminum. This is a single-conductor, integrally jacketed, photovoltaic wire rated 90°C wet or dry, 600, 1000 or 2000 V, for interconnection wiring of grounded and ungrounded photovoltaic power systems.
  • Available in Wooden reels.
  • Manufacturing range from (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Wind and solar farms.
  • Low voltage distribution systems exposed to the weather.
  • Available in Wooden reels.
  • Manufacturing range from (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Cross-Linked Polyethylene (XLP) insulation.
  • Weather and sunlight resistant.
  • Suitable for installation in humid and wet locations.
  • Suitable for direct burial installation.
  • High thermal stability.
  • Sunlight resistant (all color and all sizes).
  • VW-1 (optional).
  • Meet cold bend test and cold impact at -40ºC.
  • GR-II and PR-II.
  • Resistant to flame propagation.
  • CT when marked as RHHW-2 suitable for cable tray installations in sizes 1/0 AWG and large.
  • FT4.
  • Available in Wooden reels.
  • Manufacturing range from (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
Maximum operating voltage according to selection
600 V, 1000 V, 2000 V
Preferred max. operating temp (Dry and wet locations)
90ºC
Preferred max. operating temp (In emergency)
130ºC
Preferred max. operating temp (Short circuit)
250ºC
Packaging
Wooden reels
Manufacturing range (Aluminum)
6 AWG to 750 kcmil
Manufacturing range (Copper)
8 AWG to 750 kcmil
  • Available in Wooden reels.
  • Manufacturing range from (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • UL 4703
  • Available in Wooden reels.
  • Manufacturing range from (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓

FEATURED SPECIFICATIONS

Maximum operating voltage

600 V, 1000 V, 2000 V.

Max. operating temperature

Up to 90ºC in dry and wet locations.

SUITABLE FOR CABLE TRAYS

CT-marked conductors are suitable for cable tray installations.

FLAME PROPAGATION RESISTANT

Designed to resist flame propagation.

Manufacturing range

Available in (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

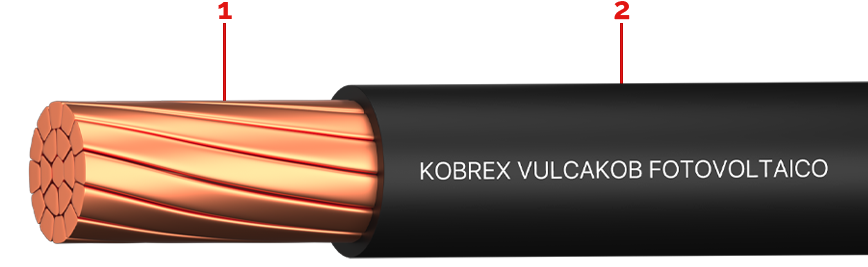

CABLE CONSTRUCTION

CONDUCTOR

Annealed copper or 1350 hard-drawn aluminum.

INSULATION

Cross-Linked Polyethylene (XLP).
