KOBREX

MV-90 XLP INSULATED

PVC JACKETED FOR 5, 15, 25 AND 35 kV FOR WET ENVIRONMENTS

resistente a la abrasión

WATER
PENETRATION
RESISTANT

alta resistencia mecánica

HIGH
DIELECTRIC
STRENGTH

RESISTENTE A AGENTES QUÍMICOS COMUNES

FLAME AND
CHEMICAL
RESISTANT

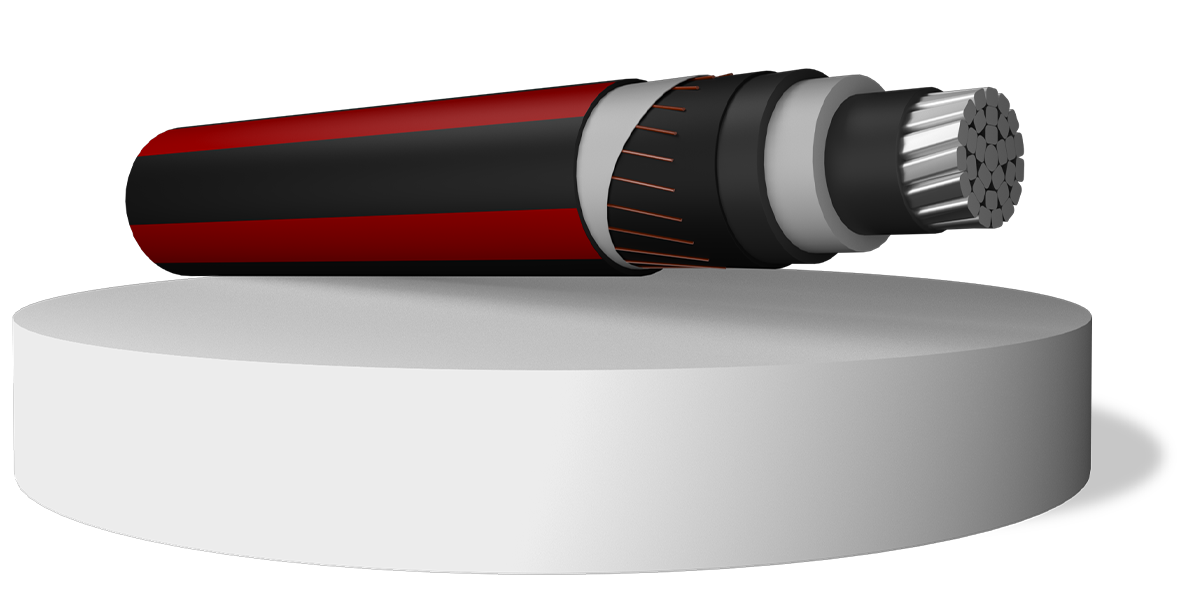

Compressed or compacted soft drawn copper or hard drawn aluminum conductor with water blocking elements, semi-conductor screen over conductor, cross-linked polyethylene (XLP) insulation, semi-conductor screen over insulation, metallic screen based on soft drawn copper wires with water blocking elements and polyvinyl chloride (PVC) jacket in red color.

Product manufacturing options:

  • Arborescence-retardant crosslinked polyethylene insulation (TR-XLP).
  • Metallic screen with copper tape.
  • Black polyethylene jacket with 3 red stripes.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • These cables are used in primary power and distribution network systems in residential, commercial, and industrial areas. They can be installed in conduit, underground ducts or directly buried.

Product manufacturing options:

  • Arborescence-retardant crosslinked polyethylene insulation (TR-XLP).
  • Metallic screen with copper tape.
  • Black polyethylene jacket with 3 red stripes.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Maximum safety.
  • Triple extrusion and dry curing manufacturing process where the electrical features are increased.
  • Excellent resistance to longitudinal penetration against water in the conductor.
  • Heat and moisture resistant cross-linked polyethylene (XLP) insulation.
  • Excellent dielectric strength and low dielectric losses.
  • Excellent resistance to longitudinal penetration against water on the metallic screen.
  • The PVC cover is certified as fire resistant, flame retardant, with minimal generation of toxic and corrosive gases.
  • Resistant to weathering, sunlight, oils, grease and chemicals.

Product manufacturing options:

  • Arborescence-retardant crosslinked polyethylene insulation (TR-XLP).
  • Metallic screen with copper tape.
  • Black polyethylene jacket with 3 red stripes.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
Maximum operating voltage
5, 15, 25 and 35 kV
Insulation level
100% and 133%
Preferred max. operating temp (Normal)
90ºC
Preferred max. operating temp (In emergency)
130ºC
Preferred max. operating temp (Short circuit)
250ºC
Packaging
Wooden reels with heat-shrink caps for protection
Manufacturing range
2 AWG to 1000 kcmil

Product manufacturing options:

  • Arborescence-retardant crosslinked polyethylene insulation (TR-XLP).
  • Metallic screen with copper tape.
  • Black polyethylene jacket with 3 red stripes.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • UL 1072

Product manufacturing options:

  • Arborescence-retardant crosslinked polyethylene insulation (TR-XLP).
  • Metallic screen with copper tape.
  • Black polyethylene jacket with 3 red stripes.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓

FEATURED SPECIFICATIONS

Maximum operating voltage

5, 15, 25 and 35 kV.

Max. operating temperature

Up to 90°C in normal operating conditions.

LOW TOXIC GAS EMISSIONS

PVC jacket minimizes the generation of toxic and corrosive gases.

WEATHER AND SUNLIGHT RESISTANT

Resistant to weathering and sunlight exposure.

Manufacturing range

Available in 2 AWG to 1000 kcmil.

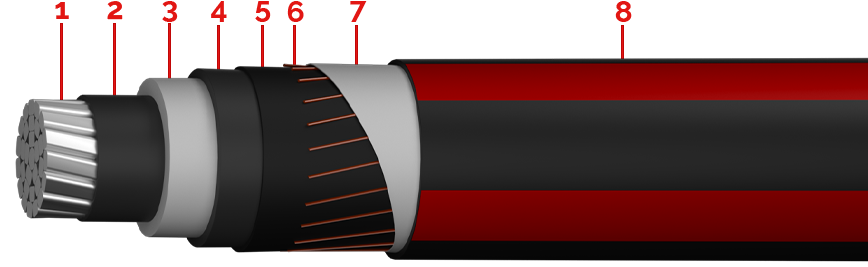

CABLE CONSTRUCTION

CONDUCTOR

Compressed or compacted soft drawn copper or hard drawn aluminum conductor.

SCREEN

Semi-conductive screen over the conductor.

WATER BLOCKERS

Water blocking elements around the conductor.

INSULATOR

Cross-linked polyethylene (XLP).

SCREEN

Semi-conductive screen over the insulation.

METALLIC SCREEN

Soft drawn copper wire metallic screen.

WATER BLOCKERS

Water blocking elements beneath the metallic screen.

JACKET

Red polyvinyl chloride (PVC) outer jacket.
