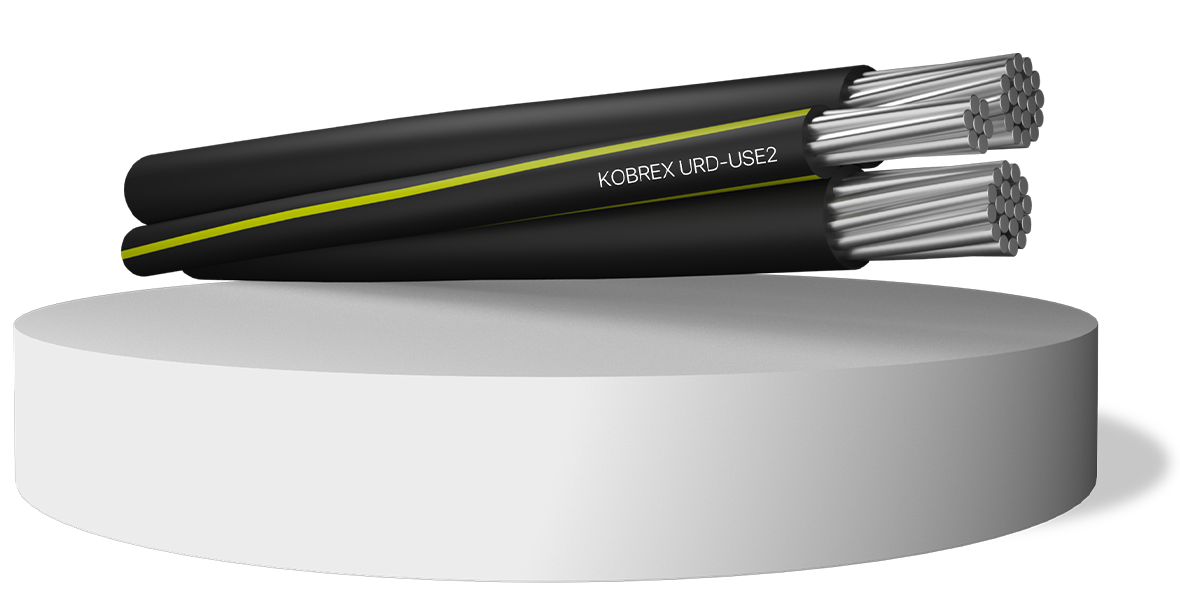

KOBREX

SECONDARY DISTRIBUTION URD

CABLE 600 V 90ºC

APTO PARA INSTALACIÓN SUBTERRÁNEA

DIRECT
BURIAL
INSTALLATION

apto para humedo y seco

WET
AND DRY
LOCATIONS

sun

SUNLIGHT
RESISTANT
CONSTRUCTION

  • Conductor: Strander compressed 1350-H16/H26 (3/4 Hard) aluminum.
  • Insulation: Cross Linked Polyethylene (XLPE).
  • Neutral: Cross Linked Polyethylene (XLPE) with three Yellow Extruded Stripes (YES).
  • Available in Wooden reels.
  • Manufacturing range: (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Secondary distribution and underground service at 600V, can be installed direct burial or in ducts.
  • Available in Wooden reels.
  • Manufacturing range: (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Sunlight resistant.
  • Single conductor are UL listed as type USE-2.
  • Available in Wooden reels.
  • Manufacturing range: (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
Maximum operating voltage according to selection
600 V
Preferred max. operating temp (Dry and wet locations)
90ºC
Preferred max. operating temp (In emergency)
130ºC
Preferred max. operating temp (Short circuit)
250ºC
Packaging
NR (Non-Returnable Wood Reels), RM (Returnable Metal, Flat Bar Ties), RMT (Returnable Metal, One Beam Ties)
Manufacturing range (Aluminum)
6 AWG to 750 kcmil
Manufacturing range (Copper)
8 AWG to 750 kcmil
  • Available in Wooden reels.
  • Manufacturing range: (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • UL 854
  • ASTM B231
  • ASTM B609
  • Available in Wooden reels.
  • Manufacturing range: (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓

FEATURED SPECIFICATIONS

Maximum operating voltage

Up to 600 V.

Max. operating temperature

Suitable for wet and dry locations at up to 90°C.

XLPE INSULATED CONSTRUCTION

Cross-linked polyethylene insulation for reliable performance.

IDENTIFIABLE NEUTRAL CONDUCTOR

Neutral features three extruded yellow stripes for easy identification.

Manufacturing range

Available in (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

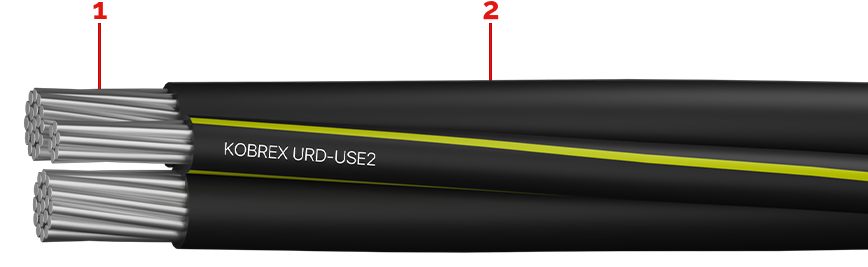

CABLE CONSTRUCTION

CONDUCTOR

Aluminum (1350 - EC alloy) conductor steel reinforced.

INSULATION

Cross Linked Polyethylene (XLPE).

documentation and support

DATA SHEET

Download the data sheet of the product.

CERTIFICACIÓN ANCE

Consulta la certificación oficial del producto.

CERTIFICACIÓN ANCE

Consulta la certificación oficial del producto.

CERTIFICACIÓN LAPEM

Certificaciones emitidas por LAPEM.
