KOBREX

ACSR/AW BARE ALUMINUM

CONDUCTOR WITH ALUMINUM-CLAD STEEL REINFORCED CORE

ALTA CONDUCTIVIDAD ELÉCTRICA

GOOD
ELECTRICAL
CONDUCTIVITY

bajo peso y ligero

LIGHTWEIGHT
FOR OVERHEAD
LINES

alta resistencia mecánica

HIGH
MECHANICAL
STRENGTH

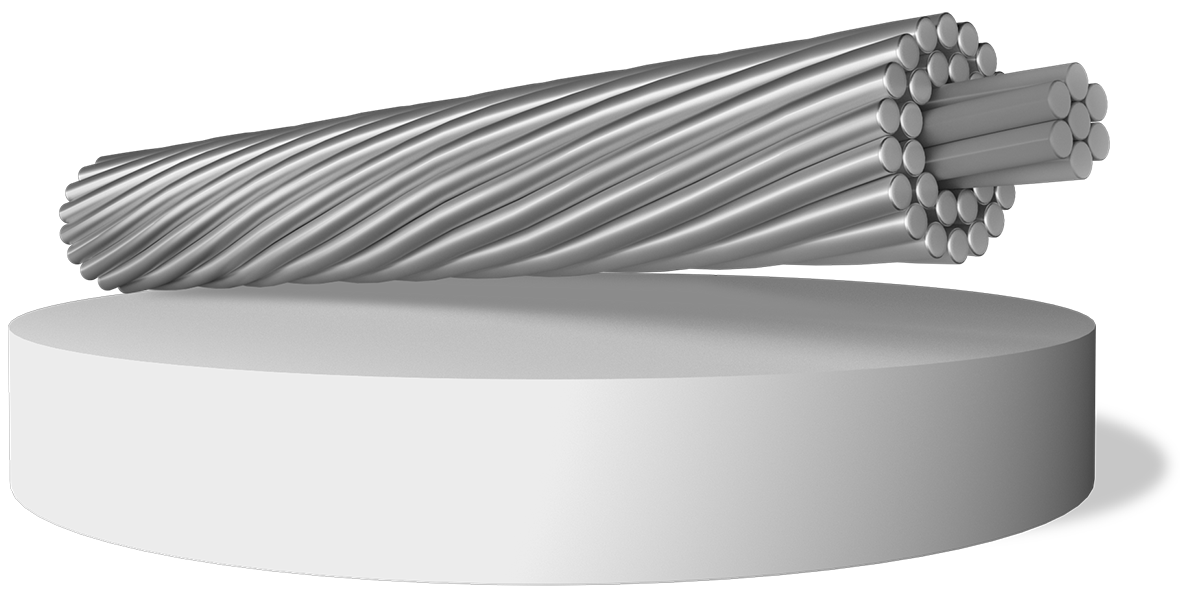

Bare aluminum (1350 – EC alloy) conductor steel reinforced concentric stranding with a core of a single aluminum-clad steel wire or stranding aluminum-clad steel wires.

  • Available in Wooden reels.
  • Manufacturing range from 4 AWG to 1590 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Overhead transmission and distribution lines with span between poles or towers, located in areas with high corrosion and pollution problems such as coastal or industrial areas.
  • Available in Wooden reels.
  • Manufacturing range from 4 AWG to 1590 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Low weight.
  • Good electrical conductivity.
  • High mechanical strength.
  • Corrosion resistant.
  • Available in Wooden reels.
  • Manufacturing range from 4 AWG to 1590 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
Preferred max. operating temp
75ºC
Packaging
Wooden reels
Manufacturing range
4 AWG to 1590 kcmil
  • Available in Wooden reels.
  • Manufacturing range from 4 AWG to 1590 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • ASTM B230
  • ASTM B232
  • ASTM B502
  • ASTM B549
  • Available in Wooden reels.
  • Manufacturing range from 4 AWG to 1590 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓

FEATURED SPECIFICATIONS

Maximum operating voltage

Depending on insulators supporting the line.

Max. operating temperature

Up to 75°C.

HIGH MECHANICAL STRENGTH

Reinforced with an aluminum-clad steel core.

IDEAL FOR LONG SPANS

Designed for overhead lines between poles or towers.

Manufacturing range

Available in 4 AWG to 1590 kcmil.

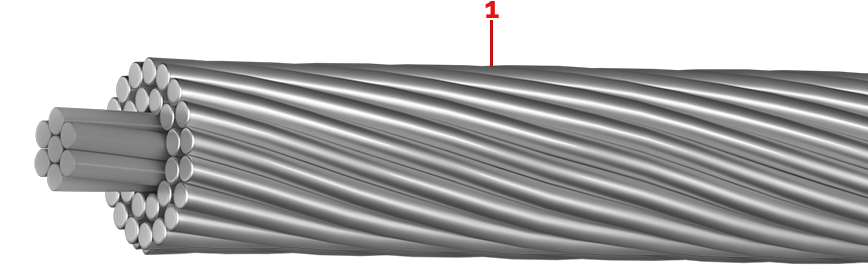

CABLE CONSTRUCTION

CONDUCTOR

Aluminum (1350 - EC alloy) conductor steel reinforced with aluminum-clad steel.
