AA8000 PHOTOVOLTAIC

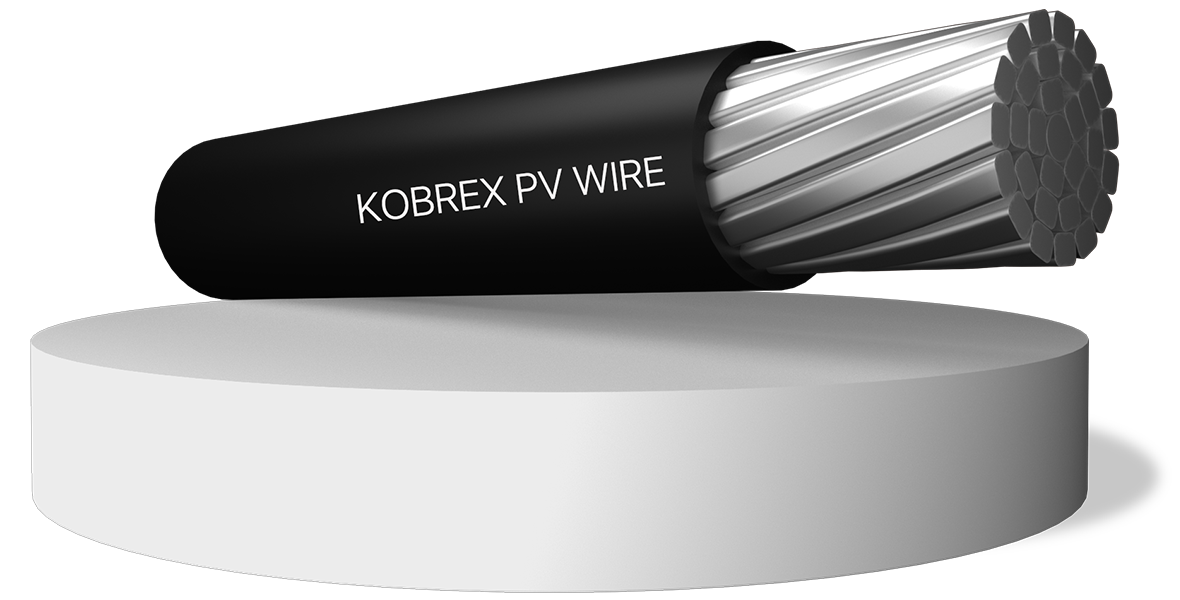

CABLES XLP INSULATED SR-CT FOR 600, 1000 AND 2000 V 90ºC

apto para humedo y seco

WEATHER
AND SUNLIGHT
RESISTANT

APTO PARA INSTALACIÓN SUBTERRÁNEA

DIRECT
BURIAL
INSTALLATIONS

MAYOR ESTABILIDAD TÉRMICA

HIGH
THERMAL
STABILITY

Class “B” strand, concentric or compact AA-8000 series aluminum. This is a singleconductor, integrally jacketed, photovoltaic wire rated 90°C wet or dry, 600, 1000 or 2000 V, for interconnection wiring of grounded and ungrounded photovoltaic power systems described in Section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA 70.
  • Available in Wooden reels.
  • Manufacturing range from (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Wind and solar farms.
  • Low voltage distribution systems exposed to the weather.
  • Energy circuits.
  • Control circuits.
  • Industrial installations.
  • Available in Wooden reels.
  • Manufacturing range from (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Cross-Linked Polyethylene (XLP) insulation.
  • Weather and sunlight resistant.
  • Suitable for installation in humid and wet locations.
  • VW-1 optional.
  • Suitable for direct burial installation.
  • High thermal stability.
  • Sunlight resistant (all color and all sizes).
  • Meet cold bend test and cold impact at -40º C.
  • GR-II and PR-II.
  • Resistant to flame propagation.
  • CT to 4 AWG and bigger.
  • FT4.
  • Available in Wooden reels.
  • Manufacturing range from (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
Maximum operating voltage according to selection
600 V, 1000 V, 2000 V
Preferred max. operating temp (Dry and wet locations)
90ºC
Preferred max. operating temp (In emergency)
130ºC
Preferred max. operating temp (Short circuit)
250ºC
Packaging
Wooden reels
Manufacturing range (Aluminum)
6 AWG to 750 kcmil
Manufacturing range (Copper)
8 AWG to 750 kcmil
  • Available in Wooden reels.
  • Manufacturing range from (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • UL 4703
  • Available in Wooden reels.
  • Manufacturing range from (Aluminum) 6 AWG to 750 kcmil and (Copper) 8 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓

FEATURED SPECIFICATIONS

Maximum operating voltage

600 V, 1000 V, and 2000 V.

Max. operating temperature

Up to 90°C in dry and wet locations.

EXCELLENT COLD WEATHER PERFORMANCE

Meets cold bend and cold impact tests at -40°C.

FLAME PROPAGATION RESISTANT

Designed to resist flame propagation.

Manufacturing range

Available in aluminum from 6 AWG to 750 kcmil and copper from 8 AWG to 750 kcmil.

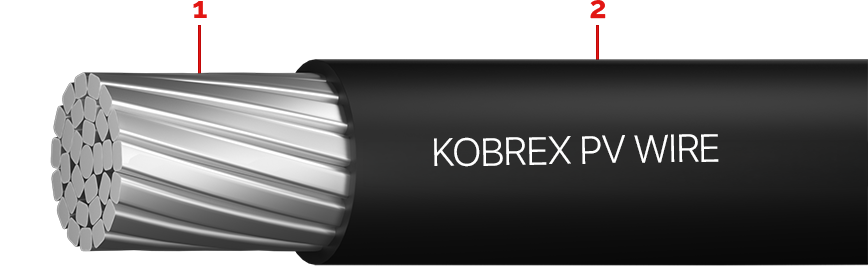

CABLE CONSTRUCTION

CONDUCTOR

AA-8000 series aluminum.

INSULATION

Cross-linked polyethylene (XLP).
