KOBREX

8000 SERIES TYPE XHHW-2

LS CT-SR 600 V or 1000 V 90ºC

apto para humedo y seco

WEATHER
AND SUNLIGHT
RESISTANT

alta resistencia mecánica

XLP
INSULATED
CONSTRUCTION

MAYOR ESTABILIDAD TÉRMICA

HIGH
THERMAL
STABILITY

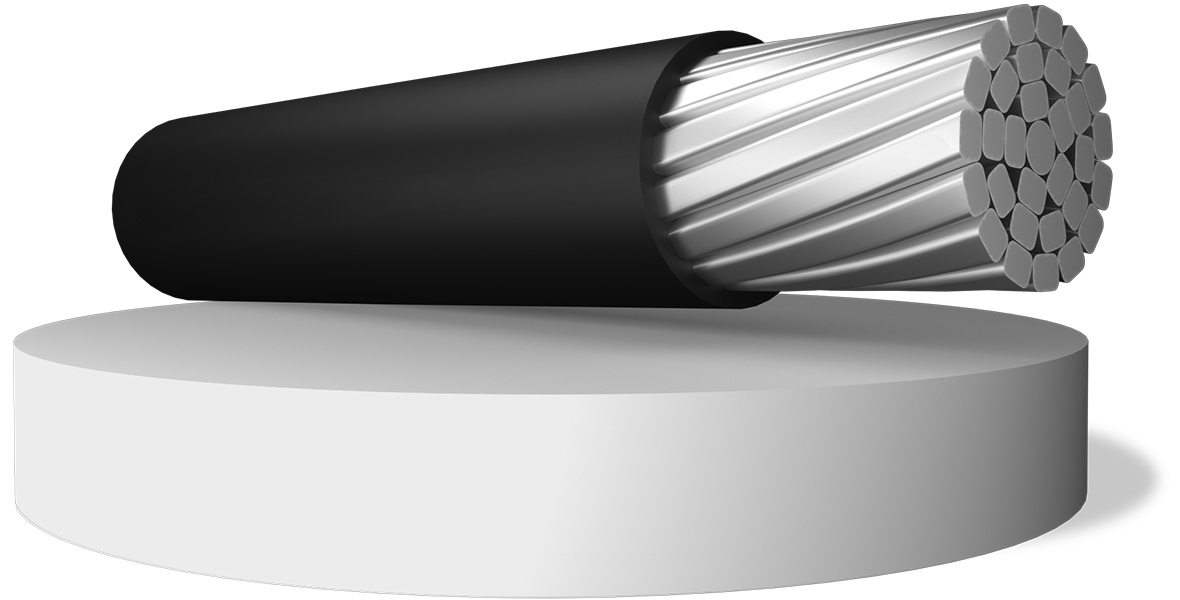

Aluminum alloy 8000 series conductor. Cross-Linked Polyethylene (XLP) insulation. Weather and sunlight resistant. Approved for use in cable trays.
  • Available in Wooden reels.
  • Manufacturing range from 6 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Low voltage distribution systems.
  • Energy circuits.
  • Control circuits.
  • Industrial installations.
  • Available in Wooden reels.
  • Manufacturing range from 6 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • Cross-linked polyethylene insulation (XLP).
  • Suitable for installation in humid, wet or dry locations.
  • High thermal stability.
  • Conductors marked with CT are suitable for cable tray installations in sizes 1/0 AWG and large.
  • Conductors marked SR are sunlight resistant and apply to all sizes and colors.
  • Available in Wooden reels.
  • Manufacturing range from 6 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
Maximum operating voltage
600 V / 1000 V
Preferred max. operating temp (Dry locations)
90ºC
Preferred max. operating temp (Humid and wet locations)
75ºC
Preferred max. operating temp (In emergency)
130ºC
Preferred max. operating temp (Short circuit)
250ºC
Packaging
Wooden reels
Manufacturing range
6 AWG to 750 kcmil
  • Available in Wooden reels.
  • Manufacturing range from 6 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓
  • UL 44
  • Available in Wooden reels.
  • Manufacturing range from 6 AWG to 750 kcmil.

DISCOVER OUR COMPLETE BROCHURE

Download our product brochure and explore our solutions.
DOWNLOAD ↓

FEATURED SPECIFICATIONS

Maximum operating voltage

600 V and 1000 V.

Max. operating temperature

Up to 90°C in dry locations.

SUITABLE FOR CABLE TRAYS

CT-marked conductors are approved for cable tray installations.

SUNLIGHT RESISTANT CONSTRUCTION

Designed to withstand prolonged exposure to sunlight.

Manufacturing range

Available in 6 AWG to 750 kcmil.

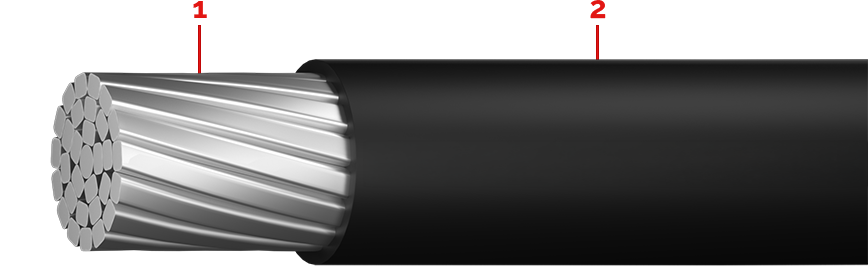

CABLE CONSTRUCTION

CONDUCTOR

AA-8000 series aluminum.

INSULATION

Cross-linked polyethylene (XLP).

documentation and support

DATA SHEET

Download the data sheet of the product.

CERTIFICACIÓN ANCE

Consulta la certificación oficial del producto.

CERTIFICACIÓN ANCE

Consulta la certificación oficial del producto.

CERTIFICACIÓN LAPEM

Certificaciones emitidas por LAPEM.
